Butfering Classic 213 Wide Belt Sander – Reconditioned

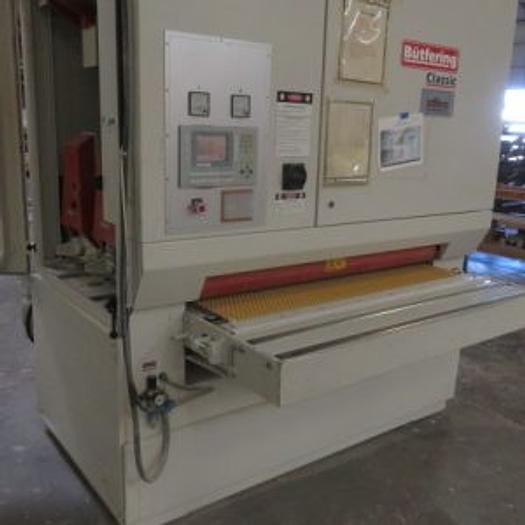

Butfering Classic 213 Wide Belt Sander
Description: 2-Head, 43″ width cap. ideal for thin veneer and lacquer sanding. 1,320 X 2,620 mm, or 52″ X 103″ BELT SIZE.
1st Head: Rubber covered contact rolls with 85* shore (grooved) with segmented platen, 52-25 mm wide segments pneumatically controlled with variable edge pressure, 25 HP motor inverter drive for 30 – 60 FPS belt speed, abrasive belt.
2nd Head: Combination head with rubber covered contact roll and segmented polishing platen, 52-25 mm wide segments pneumatically controlled with variable edge pressure, 20 HP motor inverter drive for variable abrasive belt speed 5 – 40 FPS.
Outfeed rotary panel/fill smoothing brush 5HP motor. Air jet abrasive belt cleaning on both heads. Computer control LED terminal, (50) sanding programs for automatic setup, automatic positioning of contact roll. Conveyor belt feed, 8 – 42 FPM variable feed speed, 2 HP feed drive, vacuum bed assembly with 4.
