Holzma Optimat CNC Panel Saw HPP 82-38

Holzma Optimat CNC Panel Saw HPP 82-38

$17,500 (USD)

orCall 303-632-8818

Description

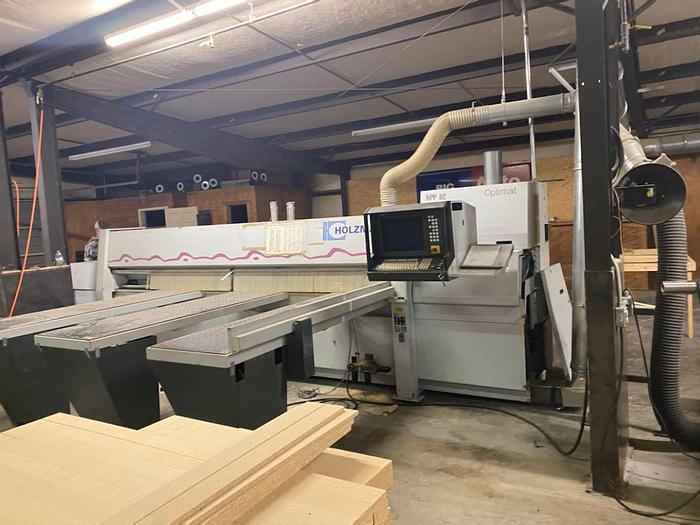

Holzma HPP-82-38 Optimat CNC Panel Saw Excellent condition!


Description: Cutting length mm 3800, Pusher stroke mm 3800 mm blade projection mm 95,Main motor power kW 21,Machine control HOLZMA CADMATIC 3.0, Number of grippers 9, Feedrate max m/min 125, continuously variable feed, Saw blade diameter max mm 380, Scoring aggregate, 28 HP (21 kW) main motor, 3 HP (2.2 kW) Scoring motor, Carriage advancing from 5-125 M/M (16`-410`/min), Electronically controlled overhead program fence, Rack & pinion driven on both sides, Forward speed to 262 FPM (80 MPM), Return speed 262 FPM (80 MPM, Seven (7) clamps which open up to 4″ (102 mm), Jump scoring for post form cutting, HOLZMA “CADMATIC” Control with; Virtually unlimited cutting dimensions, color screen, moving graphics and numeric display, CAD input, floppy disk drive and possible on-line operation via RS-232 Port linked to office PC, Combi-rollers rear machine table with profile rails, Three (3) air flotation tables 2160 mm x 650 mm, Right angle crosscut fence, Automatic side pressure device with front and rear forks for holding ripped strips squarely, against the right angle fence.


Specifications

ManufacturerHolzma
ModelOPT HPP 82-38
ConditionUsed
