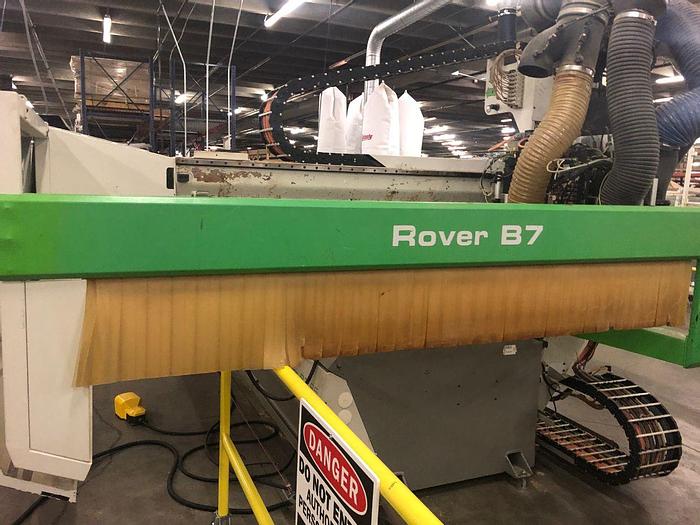

Biesse Rover B7


Description: 5' x 12' "Matrix" grid phenolic surface for "Nested Base Manufacturing"; Working cap. "X" Axis 143.3" (3,640 mm), "Y" axis 61.1" (1,552 mm), "Z" axis stroke is 8.8" (225 mm), max. material thickness 7" (180 mm). "X & Y" axis 262 FPM (75 MPM), "Z" axis 98.4 FPM (30 MPM);


"X" Axis uses a helical rack & pinion system, "Y" & "Z" axes use precision ball screws. All axes movement is on precision linear guides & ways & controlled by digital, brushless AC Servo motors; all motion components are maintained by an automatic lubrication system.



Flat table design with "Matrix" grid phenolic syrface for "Nested Base Manufacturing", (2) Independent working areas; (4) external pop-up reference pins.


(1) 3 HP (2.3 kW) - 4,000 RPM motor: (14) independent vertical spindles, (8) in "X" axis & (6) in "Y" axis; (4) horizontal spindles with (1+1) in "X" axis & (1+1) in "Y" axis. (1) 12.2 HP (9 kW) Air cooled electro-spindle with HSK-F63 adaptor, variable speed from 1,000 - 24,000 RPM; (1) 12-Position ride along tool changer for "on the fly" ATC.

Specifications

ManufacturerBiesse
ModelRover B7
ConditionUsed
