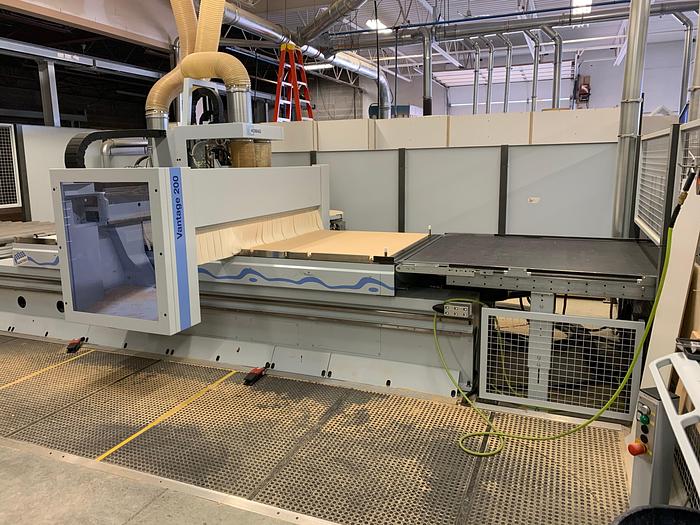

Homag Vantage 200

Homag Vantage 200

Contact us for price

Denver, CO

orCall 303-632-8818

Description

Homag Vantage 200 - Manufactured 2018 Like new and in excellent condition! Guaranteed! Over $250,000 new!

Description:

  • 5x12 Nesting machine
  • Infeed (TLF integration with roller table)
  • Out feed (With conveyor and overhead cleaning)
  • C Axis
  • 24 spindle drill block
  • 14 place travelling tool holder
  • 600 Volt
  • Vantage 200/510 7080 5070 9400 14300 512 7480 5070 9800 15600 610 7080 5350 9400 14300 612 7480 5350 9800 15600 710 7080 5780 9400 14300 714 8230 5780 11500 17780 Vector speed m/min (X - Y) 130 - (Z) 20 Compressed air connection inch R ½ Compressed air required bar 7 Dust extraction port mm Ø 200 Dust extraction volume m3 /h min. 3170 Total machine weight 510-714 kg appr. 5100 - 7300 Electrical power – total connection load kW 26,5 - 38 Switch cabinet mm 1000/800 x 800 x 1970
  • VANTAGE 200 SERIES – WORKING FIELDS Width (mm) Length (mm) Thickness (mm) Width (ft) Length (ft) Thickness (inch) Vacuum capacity Vantage 200/ 510 1550 3130 100 5 10 3,94 580/690 m3 /h 50/60 Hz 512 1550 3700 100 5 12 3,94 580/690 m3 /h 50/60 Hz 610 1880 3130 100 6 10 3,94 580/690 m3 /h 50/60 Hz 612 1880 3700 100 6 12 3,94 580/690 m3 /h 50/60 Hz 710 2250 3130 100 7 10 3,94 870/1035 m3 /h 50/60 Hz 714 2250 4300 100 7 14 3,94 870/1035 m3 /h 50/60 Hz

Specifications

ManufacturerHomag
ModelVantage 200
ConditionUsed
