Lagun Republic FTV3

Contact us for price

Denver, CO

orCall 303-632-8818

Description

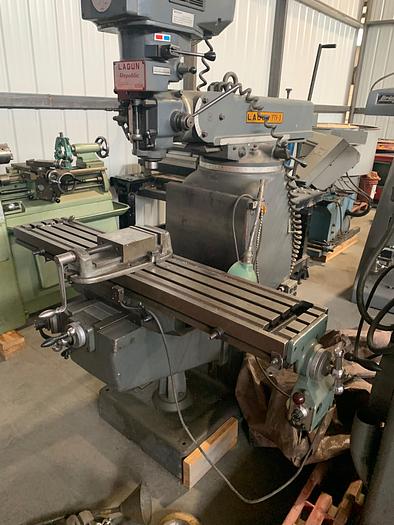

Lagun Republic FTV 3 Milling Machine Very Good Condition

SPECIFICATIONS:
TABLE AREA ................................. 58" X 11"
LONGITUDINAL TRAVEL ........................ 36"
CROSS TRAVEL ............................... 15-1/2"
VERTICAL KNEE TRAVEL ....................... 18"
RAM TRAVEL ................................. 22-3/16"
MAXIMUM WORKPIECE WEIGHT ................... 1,000 LBS
SPINDLE SPEEDS VARIABLE (TWO RANGES) ....... 55 - 4250 RPM
HEAD MOVES RIGHT AND LEFT: ................. 90 DEGREES
HEAD TILTS, FRONT AND BACK: ................ 45 DEGREES
FEEDS: ..................................... .003", .0015", .006"
SPINDLE TAPER .............................. R-8
QUILL DIAMETER ............................. 3-3/8"
QUILL TRAVEL ............................... 5"
APPROXIMATE DIMENSIONS ..................... 67" x 61" x 76"H
APPROXIMATE WEIGHT ......................... 3,400 LBS.

Specifications

ManufacturerLagun Republic
ModelFTV3
ConditionUsed
