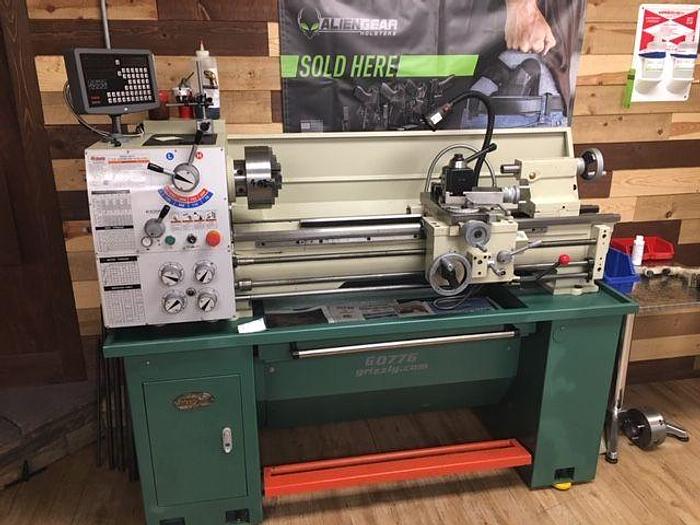

Grizzly Grizzly G0776 - 13" x 40" Gunsmithing Lathe with DRO

$4,700 (USD)

Denver, CO


Grizzly G0776 - 13" x 40" Gunsmithing Lathe with DRO - With Tooling Like New Condition! Features: 2-Axis digital readout; Quick-change gearbox; Convenient pull-out chip tray; Outboard spindle spider for gunsmithing; Quick-change tool post; Halogen worklight; Foot brake with motor shut-off switch Flame-hardened headstock gears; Built-in coolant system Full-length splash guard; D1-4 camlock spindle; Hardened cast iron bed; Standard Equipment: 6" self-centering 3-jaw chuck; 8" 4-jaw chuck with independent jaws 10" Faceplate; Steady rest; Follow rest; Quick-change tool post (200 series) Toolbox with service tools; Change gears; MT#3 HSS dead center; MT#3 carbide-tipped dead center Specifications: Swing over bed: 13-11/16"; Swing over gap: 18-1/2" Swing over cross slide: 7-11/16"; Distance between centers: 40" Bed width: 7-1/16"; Spindle bore: 1.57" (40mm) Spindle taper: MT#5; Spindle nose: D1-4 Spindle length: 16-5/16"; Spindle length with 4-jaw chuck: 20-1/2" Cuts LH threads; Cross slide travel: 5-7/8" Compound travel: 3-1/4"; Tailstock taper: MT#3 Motor: 2 HP, 220V, single-phase, 8.5A, 60 Hz, 1720 RPM Number of speeds: 8; Range of speeds: 70–2000 RPM Overall dimensions: 74-1/2" L x 31" W x 58" H Approximate shipping weight: 1370 lbs.


ModelGrizzly G0776 - 13" x 40" Gunsmithing Lathe with DRO
