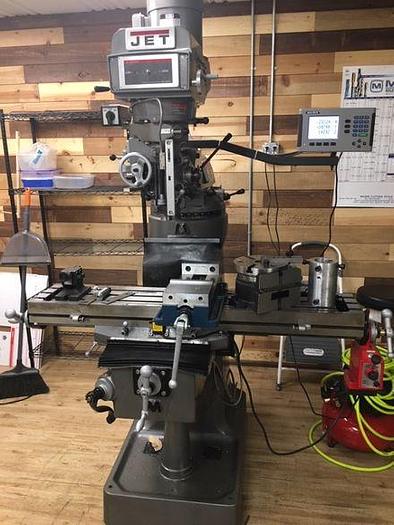

Jet JET 690125 JTM-4VS MILL, ACU-RITE 200S DRO, X Y-AXIS POWERFEED

Jet JET 690125 JTM-4VS MILL, ACU-RITE 200S DRO, X Y-AXIS POWERFEED

$10,500 (USD)

Denver, CO

orCall 303-632-8818

Description

JET 690125 JTM-4VS MILL, ACU-RITE 200S DRO, X Y-AXIS POWERFEED - Includes Tooling - Like new Condition! Approximately 20 hours! FEATURES: • Meehanite Castings • Precision bored and honed milling head • Large diameter quill is chromed • High precision Class 7 spindle bearings • Chrome plated motor shaft with lower bearing support • Spindle head is internally cooled • Heavy duty splined motor drive • One piece quill pinion and shaft • Three stage power downfeed with automatic stop• Heavy duty spindle brake SPECIFICATIONS: • Spindle Travel (In.): 5 • Table Cross Travel (In.): 12 • T-Slot Centers (In.): 2-1/2 • Distance Spindle to Column (Min.) (In.): 4-1/2 • Quill Down Feed Rates (IPR): .0015 - .003 - .006 • Work Table Weight Capacity (Lbs.): 660 • Quill Diameter (In.): 3-3/8 • Collet Capacity: 1/8 - 7/8 • Overall Dimensions (L x W x H) (In.): 66 x 63 x 85 • Number of Spindle Speeds: Variable • Range of Spindle Speeds (RPM): 60 - 4,200 • Head Movement (Deg.): 90° R & L, 45° F & B • Number of Axis: 2 • Weight (Lbs.): 2,420 • Motor (HP): 3 HP, 230/460V, 3Ph • Style (Type): Variable Speed R8 • Table Size (L x W) (In.): 9 x 49 • Distance Spindle to Column (Max.) (In.): 19 • T-Slots Number and Size (In.): 3 and 5/8

Specifications

ManufacturerJet
ModelJET 690125 JTM-4VS MILL, ACU-RITE 200S DRO, X Y-AXIS POWERFEED
ConditionUsed
