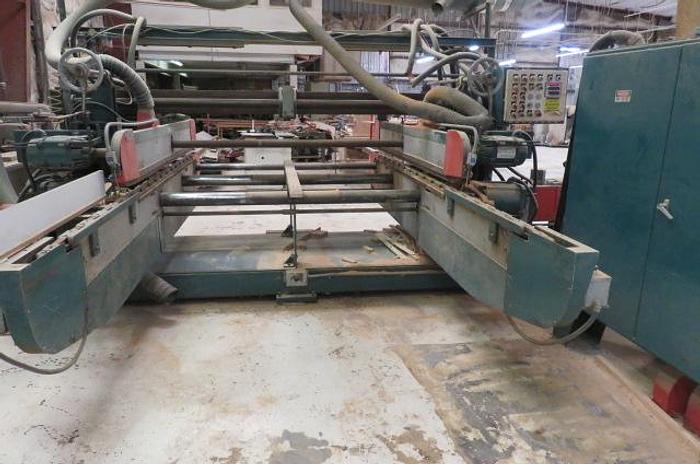

Jenkins Model 144 Double End Tenenor

Jenkins Model 144 Double End Tenenor

$34,500 (USD)

Denver, CO

orCall 303-632-8818

Description

Jenkins Model 144 Double End Tenoner - Excellent Condition! Call For Complete Specification. Description 2 stand, 4 station double end tenoner. Traverse 96" center, 45" before hold downs. , RH operator, LH fence, electrical 230 V, 60 Hz, 3PH, feed speed 15 - 75 fpm.

Upper station #1: (2) 5hp, 3600 rpm, open arbor motors tilting.

Lower Station#1A: (2) pivoting jump scores, 3600 rpm, tilting, 1-3/4" dia. shafts, x 5" long, threaded, with internal reverse thread

Lower station #1: (2) 15 HP, 3600 rpm, tilting with and driven, from trim/hog on lower station #1

Station #2 Open

Upper Station #3 (1) 15 HP, 3600 rpm, jump dado with overhead beam

Lower Station #3: (2) 7-1/2 HP, 3600 rpm, open arbor motors, tilting



Specifications

ManufacturerJenkins
ModelModel 144 Double End Tenenor
ConditionUsed
