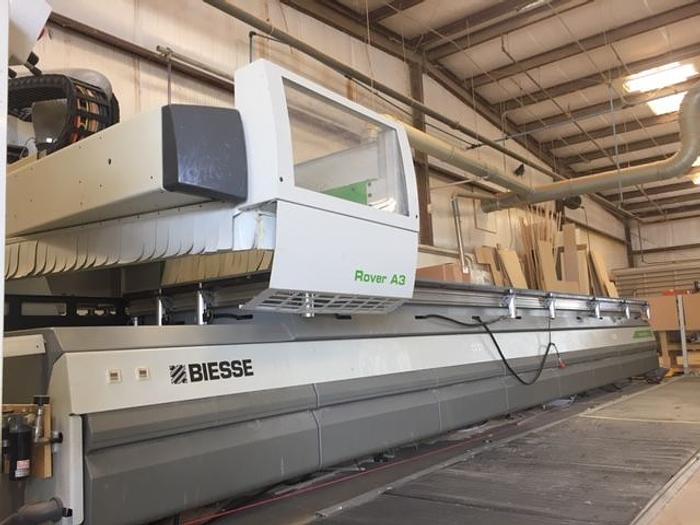

Biesse Rover A3.65 Flat Table - With Right Angle Agregate plus tooling - SOLD

Contact us for price

Denver, CO

orCall 303-632-8818

Description

Biesse Rover A3.65 FT - 2008 Excellent Condition! With Right Angle Agregate plus tooling BIESSE ROVER A 3.65/FT FLAT TABLE MACHINE (W/ATC/BORING): Specifications: 4' x 12' -- Working Capacity: X-Axis is 254" (6,450 mm) any unit, Y-axis for routing is 51" (1,290 mm), Y-axis for vertical drilling is 57" (1,436 mm), Z-axis stroke is 7.9" (200 mm), max material thickness 5.5" (140 mm). -- Positioning Speed: "X" & "Y" Axis is 262 FPM (80 MPM), "Z" axis is 82 FPM (25 MPM) with helical rack and pinion drive on "X" Axis & ballscrew in "Y" & "Z" Axis. -- Work Table: Flat table designed for "Nested Base Manufacturing", (2) independent vacuum zones and working areas; (10) External pop-up reference pins with (2) on the RH side, (2) on the LH side and (3+3) on the front of the table. Prepared for (optional) "quick fit" vacuum outlets for optional clamping of small or awkward shaped parts;

Specifications

ManufacturerBiesse
ModelRover A3.65 Flat Table - With Right Angle Agregate plus tooling - SOLD
ConditionUsed
