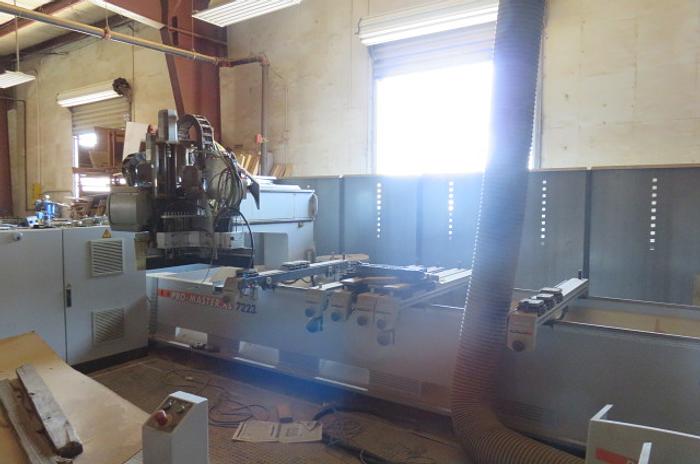

Holzher Pro Master XL 7223 CNC Router

$54,900 (USD)

Denver, CO

orCall 303-632-8818

Description

The PRO-Master 7223 is offered as standard with a 21 ½ Hp (16 kW s-6) Liquid Cooled spindle. The drill head featuring 18 vertical and 6 horizontal drills provide full workingfield coverage of all tools. A fast bi-directional 12 position rotary tool changer provides flexibility for a wide range of tooling.

Description Working dimension X 5310
Working dimension Y 1445
Working dimension Z 280
Number of routing spindles 1
Main motor power kW 12
Rotational axes C-axis
4th/5th axis Aggregate interface
Tool changing positions 34
Borer vertical 18
Machine table Pod and rail table
Positioning automatic for suction cups yes
Cantilever machine yes
Number of table bars 10
4-field processing yes
Vacuum pump yes
Capacity vacuum pump m³/h 250
Interface for .dxf data yes
.
Weight kg 7200

Specifications

ManufacturerHolzher
ModelPro Master XL 7223 CNC Router
ConditionUsed
