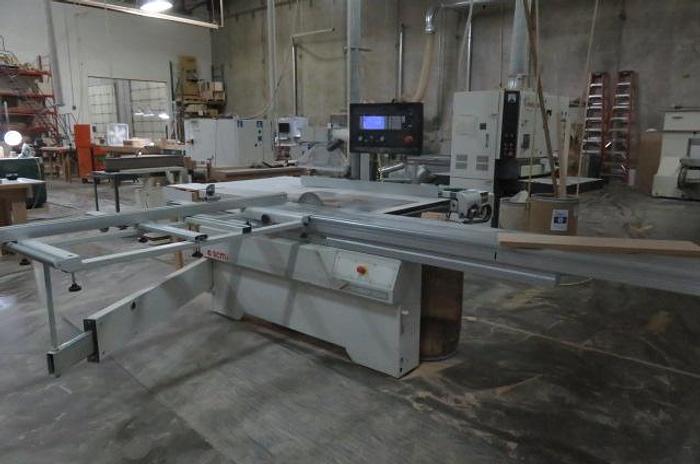

SCM Nova SI 400ep Programable Sliding Panel Saw

SCM Nova SI 400ep Programable Sliding Panel Saw

$16,500 (USD)

orCall 303-632-8818

Description

Programmable Sliding Panel Saw

Description

·        11 HP main motor

·        1 HP scoring motor

·        41" x 25" fixed table

·        34.5" work table height

·        126" max. length of crosscut with scoring

·        51" rip capacity

·        Main blade diameter 350 mm with 1" arbor (00F0904866H)

Note: Machine can take up to a 400 mm blade

·        Scoring blade diameter 120 mm with 3/4" arbor (00F0900209A)

·        Arbor speed main blade is 4,000 RPM and scoring blade is 8,500 RPM

·        Depth of cut at 0 deg. is 140 mm (5.5") and at 45 deg. is 97 mm (3.8")



MAJOR FEATURES:

·        Programming capacity up to 99 working programs

·        Anodized aluminum sliding table with hardened steel guides

·        Self braking motor

·        Separate scoring motor

·        Tilting arbor from 0 to 45 degrees

·        Overhead mounted blade guard with dust outlet

·        Heavy industrial aluminum extrusion crosscut fence with flip stops

·        EZ Dial adjustable split scoring blade assembly. Eliminates the need for shims and is fully adjustable in 0.1mm

increments

·        Standard 1 year warranty (10 years on table guideway tolerances)

·        Electrical Requirements: 36 amps @ 230 volt 3-Phase

·        Dust Extraction: 1,100 CFM

Machine net weight: 2,200 lbs.

Specifications

ManufacturerSCM
ModelNova SI 400ep Programable Sliding Panel Saw
ConditionUsed
