Brandt KDF 980

$27,500 (USD)

Denver, CO

orCall 303-632-8818

Description

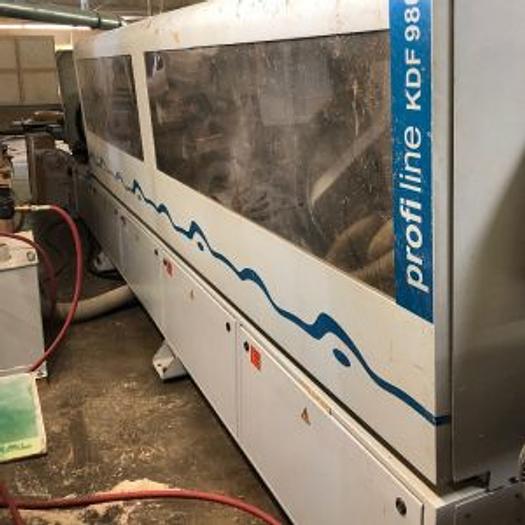

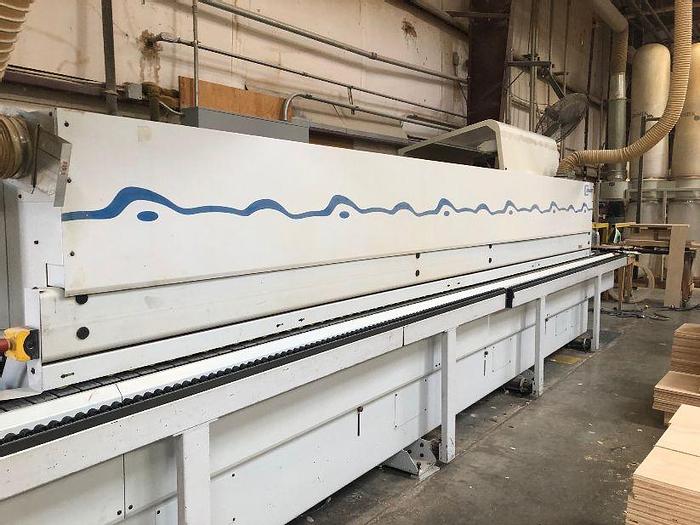

Brandt Profiline KDF 980 Edgebander - Excellent condition! With premill and corner rounding.

Edge band thickness 0.4 - 20 mm (0.016" - 25/32"), Edgeband height 12 - 65 mm (1/2" - 2 9/16"), Panel length min. 160 mm (6 3/8"), Panel width min. 65 mm (2 1/2"), Panel thickness - min.8 mm (5/16"),
- max. 60 mm (2 3/8"), Feed speed – variable 11 – 20 m/min ( 36 – 65 FPM ), max when corner rounding = 52 FPM, max using solid wood = 52 FPM, Feed motor 2.2 kw (3 HP), Joint trimming unit, Cutter speed,
2.2 kw ( 3 HP ea ) two motors, 12,000 RPM, Pressure section, First roller driven, four rollers idle, End trim unit - two motors, Cutting speed, Straight cut capacity max., 0.75 kw (1 HP), 12,000 RPM, 10 x 50 mm (25/64" x 2"), 20 x 40 mm (25/32" x 1 9/16"), Flush trimming unit, Cutter speed, 1.5 kw (2 HP), 12,000 RPM, Fine trimming unit, Tilting range, Cutter speed, .55 kw (3/4 HP ea), 0 - 25°, 12,000 RPM, Contour trimming unit - top and bottom, 0.35 kw (1/2 HP ea - two motors), Machine length, 6860 mm (22’ 6"), Machine width, 1730 mm (68"), Working height, 900 mm (35 1/2"), Total height, 2000 mm (78 3/4"), Machine net weight,
3100 kg ( 6820 lbs. ),

With premill and corner rounding.

Specifications

ManufacturerBrandt
ModelKDF 980
ConditionUsed
