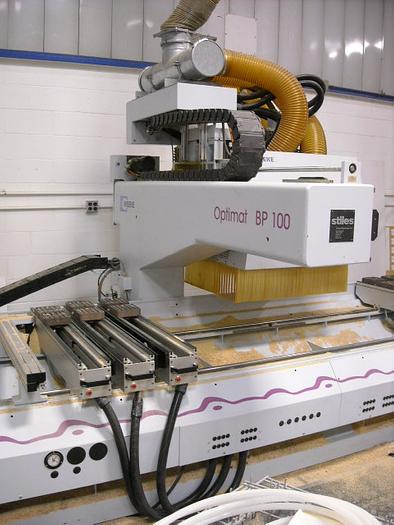

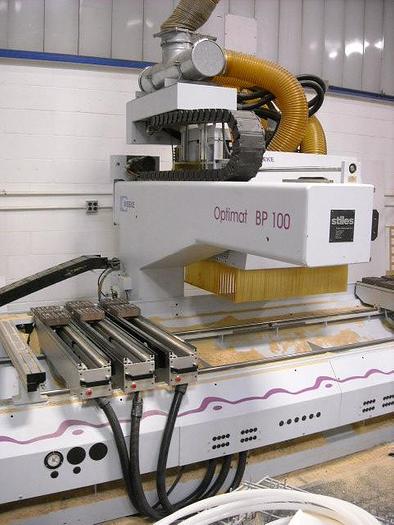

Weeke BP 100 CNC Router

$12,500 (USD)

Denver, CO

orCall 303-632-8818

Description

Weeke BP 100 CNC Router
Technical Specifications:
Number of vertical drilling spindles 19 Vertical drilling spindle power 1.5 Kw
Number of horizontal drilling spindles 4
Horizontal drilling spindle power 1.5 Kw
Router spindle power
(power constant from 9000 rpm to 18000 rpm) 5.0 Kw
X-axis grooving saw power 1.5 Kw
Saw blade diameter required 100 mm
ETP toolholder with ½” collet 2 each
Number of panel support benches 6
Number of vacuum cups per bench/total 2/12
Number of panel feeding rails 6
Vacuum pump capacity 100 M3/hr
Length of machine without switch cabinet 6300 mm
Width of machine 3900 mm
Height of machine 2300 mm
Working length 2800 mm (110-7/32″)
Working width – support bench width 1000 mm (39-3/8″)
Max. panel thickness for proper tool clearance 60 mm (2-3/8″)
Max. drilling depth for through holes 38 mm (1-15/32″)
Machine weight 3500 kg
Axis stroke
X-axis 3455 mm
Y-axis 1480 mm (58-1/4″)
Z-axis 260 mm
Axis positioning speed
X-axis 80 M/min
Y-axis 60 M/min
Z-axis 20 M/min

Specifications

ConditionUsed
