SCMI Routech Record 220

SCMI Routech Record 220

$28,900 (USD)

orCall 303-632-8818

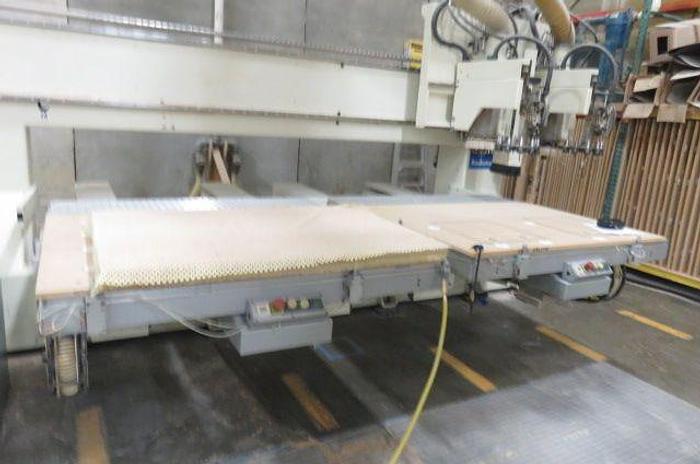

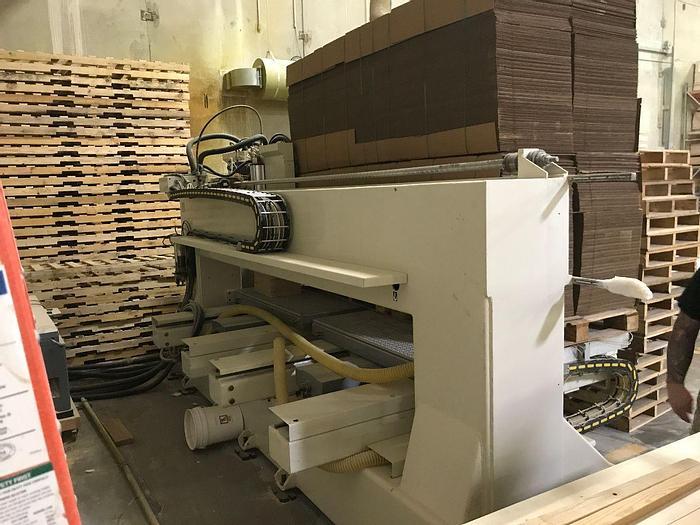

Routech Record 220 - Priced for Quick Sale Description: Vacuum pump, two - 5' x 5' zones, two 15 hp spindle motor, two tool changer, drilling units, fanuc CNC control, machine: stationary extruded aluminum table is machined with a square grid pattern for fixturing parts, grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoilboards for “nested based machining”. Excellent condition! Separate windows XP computer connects to CNC PC, includes NUM software installed serial cable running to machine. Working field: For routing “X” axis 125″ (3,180 mm), “Y” axis 49.2″ (1,250 mm), “Z” axis stroke is 11.8″ (300 mm) Closed loop AC Servo drive system with high precision “Ball Screws” in “X” & “Y” axis & “Z” axis; all axes ride on extra large precision profile linear guideways. Boring Unit with: 3.5 HP (2.6 kW) motor – 3,000 RPM; (10) vertical spindles with (6) in “X” axis & (4) in “Y” axis; (6) horizontal spindles with (2+2) in “X” axis & (1+1) in “Y” axis. Routing: (1) 10 HP (7.5 kW ) Electro-spindle with ISO 30 adaptor, spindle speeds from 900 – 18,000 RPM;


ModelRoutech Record 220
