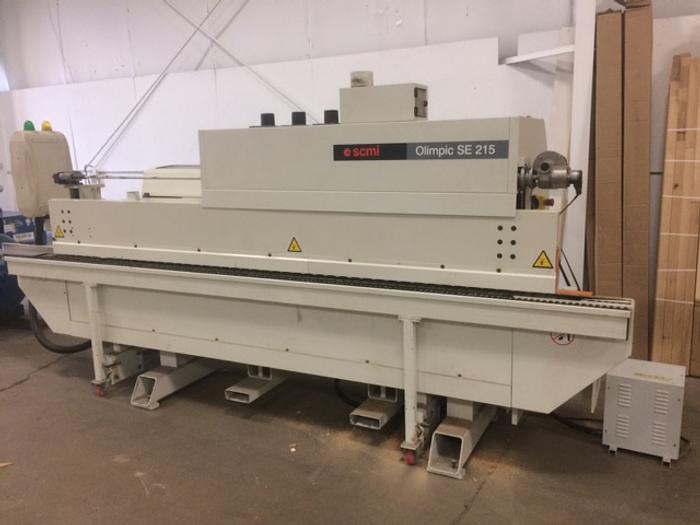

SCMI Olympic SE215 Edge Bander

SCMI Olympic SE215 Edge Bander

$18,900 (USD)

orCall 303-632-8818


SCMI Olympic SE215 Edge Bander Description: Panel height mm 10/60, Max edge thickness mm 15, Max edges in roll thickness mm 3, Gluing unit Mod. VC600-2 composed by glue pot rapid heating, glue spreader roller for the gluing of solid wood edges, Automatic edge loading for rolls in strips with n° 3 rollers, Pre-melting device , End cutting unit with 2 high frequency independent motors 0,35 Kw tilting from 0° to 15°, Overlapped trimming unit for the coarsing-trimming of the applied edge motors power Kw 1 speed rpm 12000, Tilting trimming unit for trimming, gleaning, spoking of the edge motors power Kw 0,5 rpm 12000, Rounding unit Round SK with 2 motors , Edge scraper unit for optimal edge finishing, Glue scraper unit, Brush unit for brushing and polishing of the applied edges , Feed speed mt/min 12/18, Control system PLC -, Overall dimensions : mm 5700 x 1100 x 2000 h – Weight Kg 2500 Return conveyor available for $7,500
