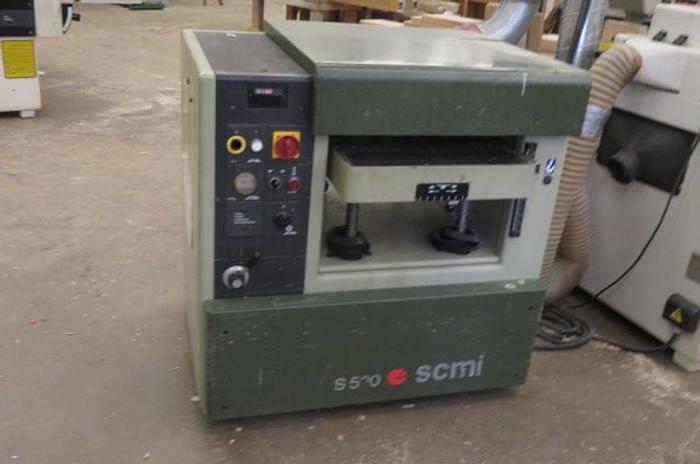

SCMI S520 Planer

$4,500 (USD)

Denver, CO

orCall 303-632-8818

Description

SCMI S520 Planer
Technical Specifications
Motor Horsepower: 9 HP.
Working Width: 520mm (20”).
Working Height: 3 – 300mm (1/8” – 11.8”).
Max. Depth of Cut: 8mm (5/16″).
Minimum Length of Stock: 250mm (10”).
Cutter Head Diameter: 120mm (4 3/4″).
RPM: 4500.
Table Size: 520mm x 900mm (20.75” x 35.4”).
Feed Speeds: 5,8,12,18 m/min (20,33,43,56 FPM).
Infeed Roller: Steel sectional, power driven.
Outfeed Roller: Rubber, power driven.
Dust Hood Diameter: 150mm.
Overall Dimensions (L,W,H): 43″ x 40″ x 44”.
Shipping Weight: 905kg (2,000 lbs).
Net Weight: 860 kg (1,890 lbs).
Electrical Requirements: 25 amps @ 230 volts

Specifications

ConditionUsed
