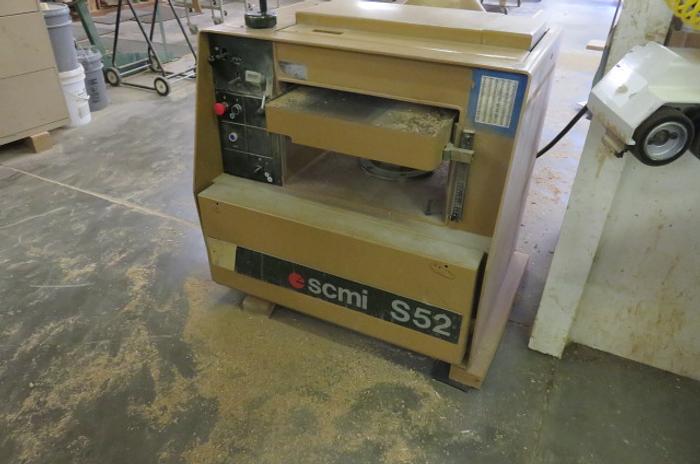

SCM S52 20″ Planer

SCM S52 20″ Planer

$3,250 (USD)

Denver, CO

orCall 303-632-8818

Description

SCM S52 20″ Planer Description:  4 Knife cutterhead, Magnetic starter with overload protection, 4 knife cutterhead, Sectional infeed rollers, Steel outfeed roller, Feed rollers are ball bearing-assisted, Table lifting by 4 high precision screws w/ dust covers, Adjustable bed rollers Independent llifting motor for table, Power table with numerical readout Fine adjustment setting, Shaving hood Knife setting gauge “CSA’ rated electrical components, Specifications: Working Width 20″ Working Height (Min/Max): 1/8″ – 9 3/4″ Max Depth of Cut 5/16″ Min. Length of Stock 10″ Cutterhead Diameter 4-3/4″ RPM 4,500 Knife Dimensions 20.5″ x 1 13/16″ x 1/8″ Table Dimensions 20.75″ x 39.4″ No. Table Rollers 2 Feed Speeds (FPM) 20,33,43,56 Feed Rolls Infeed: Sectional,Grooved Outfeed: Solid Noise Level (Db) 70 Dust Outlet 6″ Overall Dimensions 41.75″ x 35.4″ x 41.75” Electrical & Dust Requirements 25 AMPS @ 230V, 8 AWG CU THHN Wire, 980 CFM

Specifications

ConditionUsed
