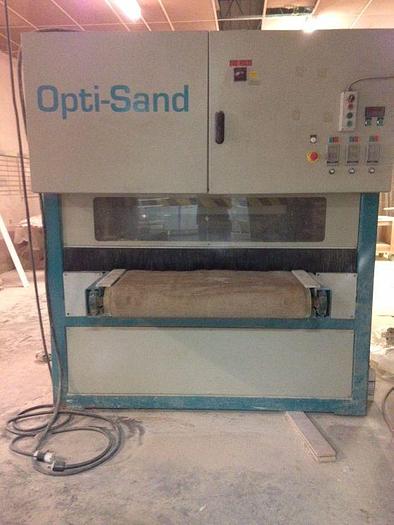

Opti-Sand RV40 Brush Sander

$32,500 (USD)

Denver, CO

orCall 303-632-8818

Description

Opti-Sand RV40 Brush Sander for finish sanding and sealer sanding wood parts including cabinet doors and components, entry doors, shutters, louvers, MDF parts (for painting, powder coating, vinyl wrapping) and more. Excellent condition.

The Opti-Sand Rotary Sander is designed to completely and thoroughly finish sand and sealer sand work pieces such as raised panel cabinet doors, entry doors, louvers, shutters, etc. The Opti-Sand Rotary Sander has four spindles mounted on a sanding deck that continuously rotates creating different angles allowing the abrasives to attack all surfaces of the work pieces. This action ensures that all surfaces are thoroughly and uniformly sanded. The sanding deck adjusts up and down for different work piece thickness and abrasive wear. Work pieces are held on the conveyor belt by the built in variable vacuum hold down system or dual track conveyors. The touch screen control is conveniently located for easy access.

Technical Specifications:
480V 3ph 60hz
Carousel head with (4) rotating arbors mounted on a central rotating deck assembly
Vacuum Hold Down
Sound enclosure
front & (2) side viewing windows
(4) easy access doors
(4) dust collection outlets of 6" each

Specifications:

Carousel deck rotation 4 - 24 RPM
4 to 24rpm front and rear spindles 7" diam x 42" long (2) center spindles 40" long
0" - 5" max. part thickness opening
(2) arbor/spindles are 12" x 53" long with 3 HP motor & (2) arbor/spindles are 12" x 45" long with 2 HP motor
Spindle speed 60 - 600 RPM
Variable vacuum conveyor belt feed speed 4 - 44 FPM
2 HP feed through drive
Floor area: 8.5 X 8 FT
Power: 480V 50 AMPS
Working length: Unlimited
Working Width: 52 in
Dust Extraction: 12 IN
Compressor Needs: 120 PSI

Specifications

ConditionUsed
