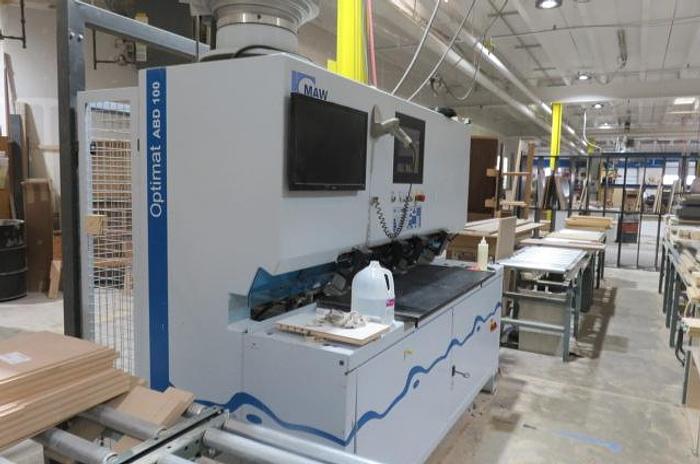

Homag Optimat ABD 100 CNC

$24,900 (USD)

Denver, CO

orCall 303-632-8818

Description

Homag Optimat ABD 100 CNC – Excellent  condition
Description: Horizontal drilling, gluing and dowel insertion: (1) Horizontal drilling aggregate with (1) individual spindle; (1) glue & dowel injector with glue flow control; (1) vibrating hopper dowel feeder.
Working Capacity: Material size from 20 mm – 1,250 mm (.75″ – 49″) long, 50 mm – 800 mm (1.9″ – 31.5″) wide, 10 mm – 60 mm (.4″ – 2.4″) thick.
(2) Separate working fields with (4) pneumatic top clamps can process up to (4) parts independently on the left-hand, right-hand or center-stops; work can be loaded in (1) field while it is being machined in the other to allow fast production of varying parts.
PC Front-end with Weeke “WoodWOP” operating system with graphic programming & error messaging; USB frontside bus, 17″ TFT flat screen monitor.
Designed for small or large capacity horizontal drilling, gluing and dowel insertion; built on a Heavy Duty welded steel base;

Specifications

ConditionUsed
